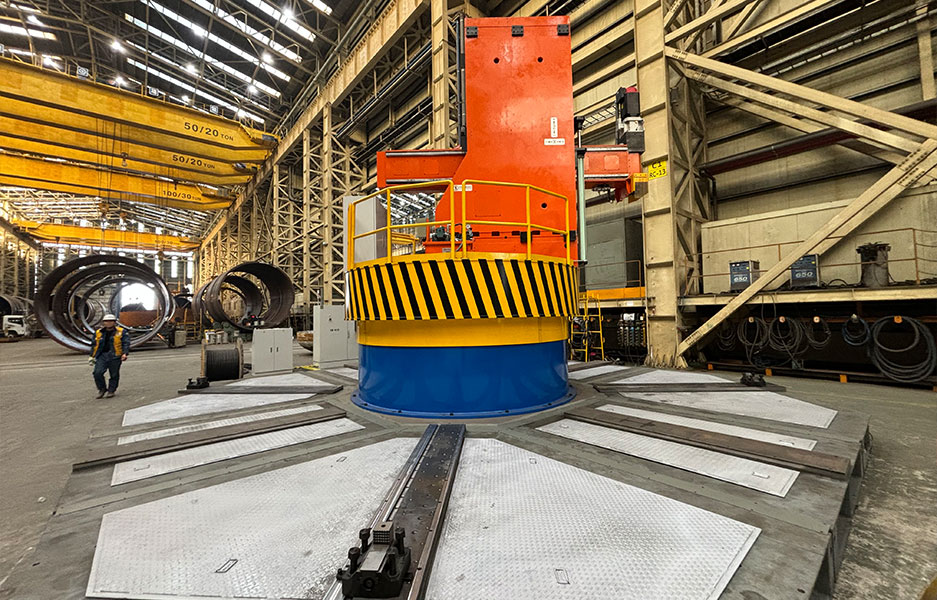

顶边铣床 Top Edge Milling Machines
-
加工罐顶凸缘的铣床

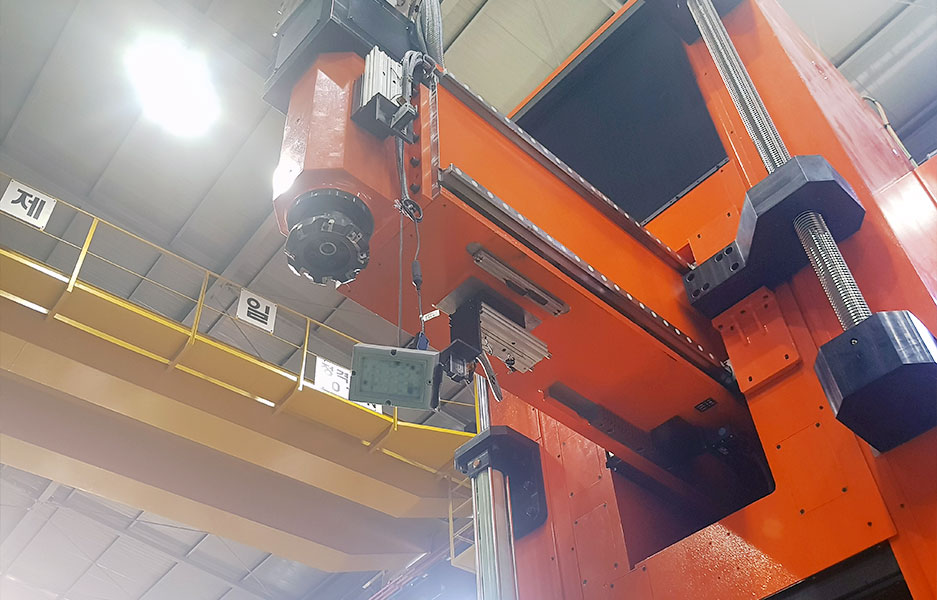

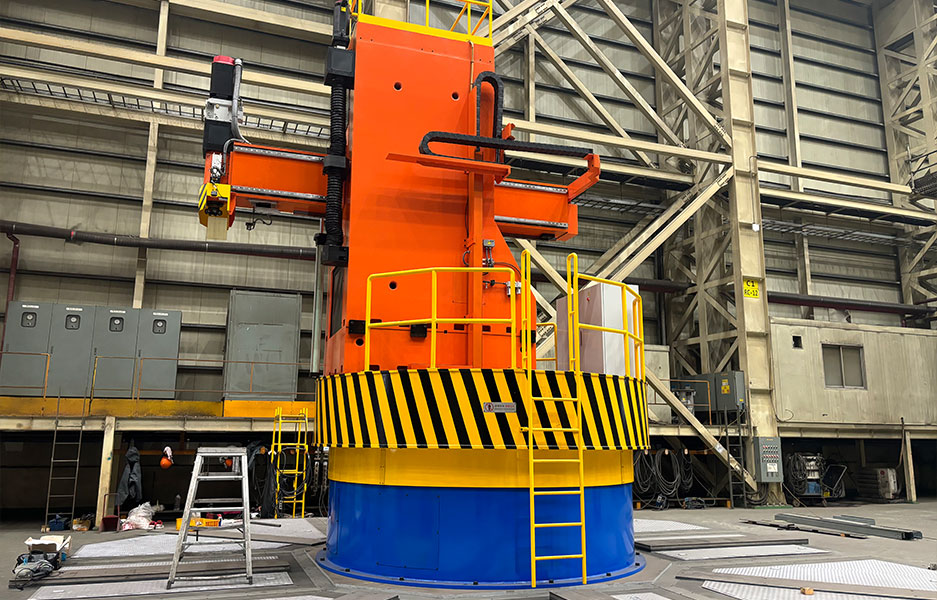

主轴头侧面安装平面测量装置，在加工前测量加工面之间的高度差，以确定最终加工量。
-

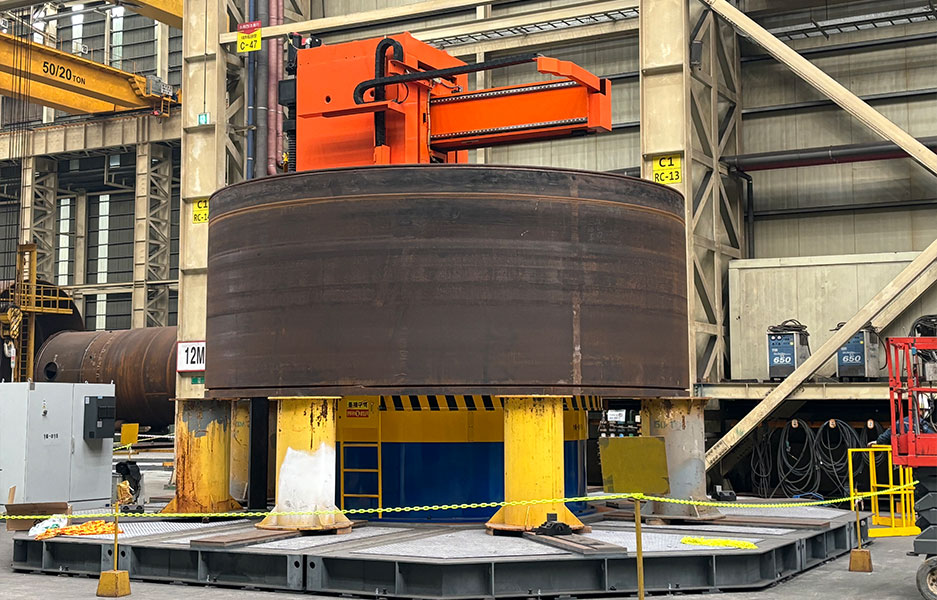

加工罐顶凸缘的铣床
| Items | Specification | |
|---|---|---|
| Machine size (mm)L×W×H | 9,000 × 9,000 × 6,800 | |
| Machine weight (ton) | 42 | |
| Workpiece | Diameter (mm) | 5,000 ~ 8,500 |
| Height (mm) | 3,000 ~ 4,200 | |
| Wall thickness (mm) | 30 ~ 120 | |
| Material | S355 or S460 or Carbon steels | |
| Main spindle | Rotating speed (rpm) | 115 ~ 600 |
| Motor power (kW) | 22 | |
| Cutting tool dia. (mm) | ø160 | |
| Travelling feed (X-axis) | Stroke (mm) | 2,190 |
| Feed rate (mm/min) | Max. 6,000 | |
| Servo motor power (kW) | 3 | |
| Travelling feed (Z-axis) | Stroke (mm) | 1,300 |
| Feed rate (mm/min) | Max. 6,000 | |
| Servo motor power (kW) | 6 | |
| Rotating feed (C-axis) | Rotation (°) | Infinite rotation |
| Feed rate (mm/min) | 0~3 | |
| Servo motor power (kW) | 6 | |
| Laser measuring system | · Before processing, the final processing depth is determined by measuring the height difference on the upper surface of the can, using a laser sensor. · Before processing, check the concentricity of the inner diameter of the can using a laser sensor. |
|

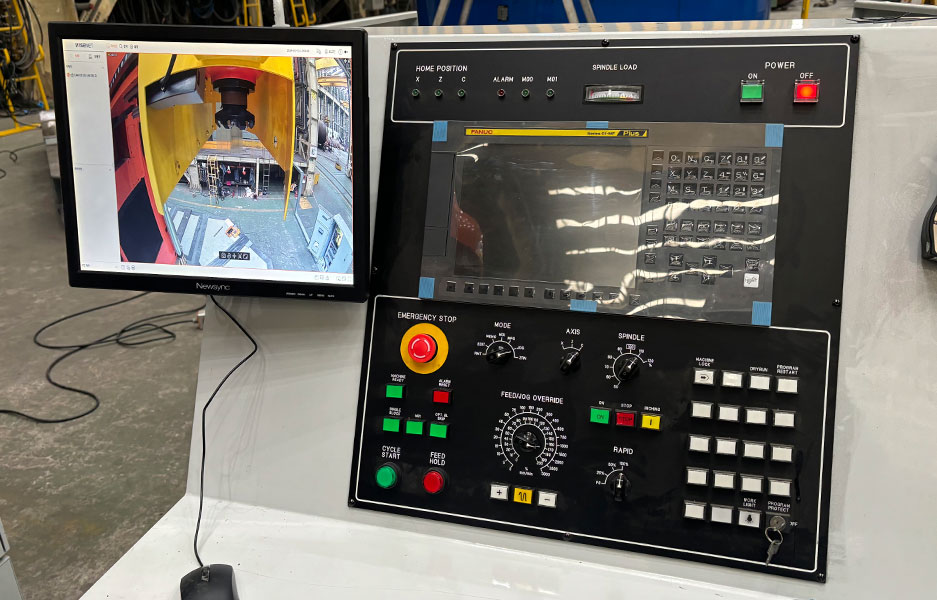

| Control system | FANUC Oi-MF+ | |
| Lubrication system | Slide way & Ball screw | Centralized lubrication system |
