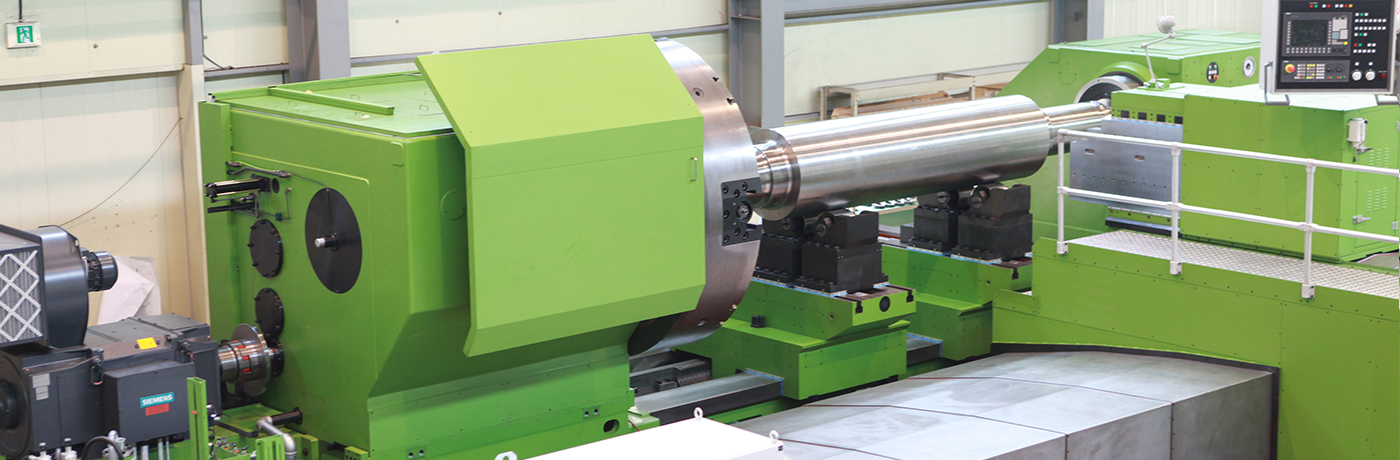

SANGNIM MSP Co.,Ltd.基于开发了全球首台静压技术的德国顾问的基础设计咨询,开发并交付了韩国第一台超大型卧式车床,可用于钢铁、重工业、发电等多个领域。

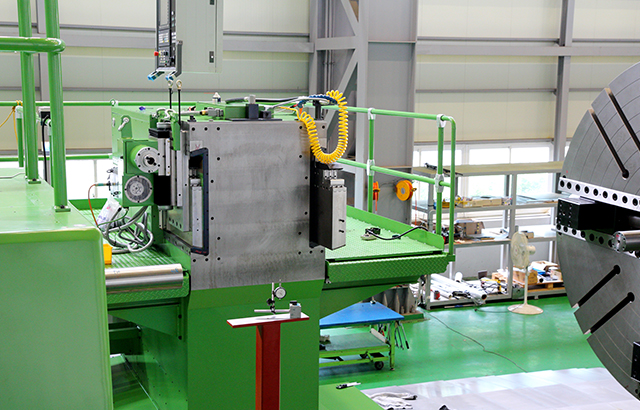

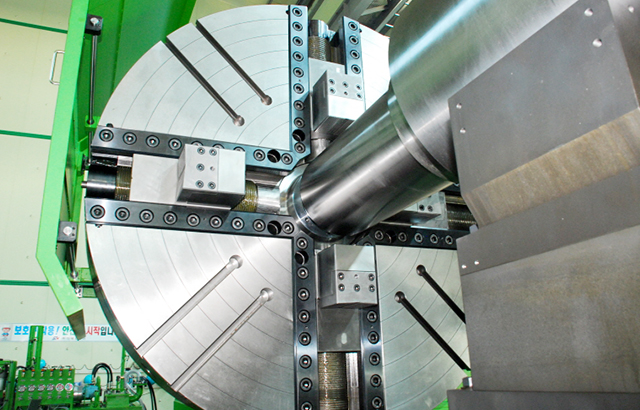

DETAIL IMAGE
Specification
Specification SNHL1 SNHL2 SNHL3 SNHL4 SNHL5
Max. Workpiece weight between centers 50 ton 100 ton 150 ton 250 ton 350 ton
Max. swing over carriage 4,000 mm 4,000 mm 5,000 mm 5,000 mm 6,000 mm
Max. turning length 15,000 mm 20,000 mm 30,000 mm
Spindle motor power 90 ~ 130 kW 150 ~ 250 kW 200 ~ 300 kW 200 ~ 300 kW 250 ~ 360 kW
Speed range of spindle 0.5 ~ 200 rpm 0.5 ~ 150 rpm 0.5 ~ 150 rpm 0.5 ~ 120 rpm 0.5 ~ 120 rpm
Max. cutting force 160 kN 160 kN 200 kN 250 kN 250 kN
X-axis stroke 700 ~ 1,300 mm 1,000 ~ 1,500 mm 1,000 ~ 2,000 mm 1,000 ~ 2,000 mm 1,000 ~ 2,500 mm
Z-axis stroke 16,000 mm 21,500 mm 31,500 mm
X-axis feed rate 6,000 mm/min
Z-axis feed rate 6,000 (10,000) mm/min
Control system Siemens or Fanuc
Measuring system Heidenhain or Fagor
touch slide

*对于上述以外的定制规格,请联系我们。

Basic Accessories
  • X, Z-axis telescopic cover
  • Work light
  • Patrol lamp (red, green, yellow)
  • Leveling block & anchor bolt
  • 4 chucking jaw units
  • Test bar
  • Center (60°, 75° 90°)
Optional Accessories
  • Coolant supply unit (internal / external)
  • Chip conveyor
  • C-axis function
  • Dual cutting attachment
  • Milling attachment
  • Grinding attachment
  • Drilling attachment
  • Boring unit
  • Special external cutter unit
  • Roller rest
  • Hydrostatic steady rest
  • Hydraulic steady rest
  • Machine tools monitoring system (black box)
  • Industrial camera with recorder
