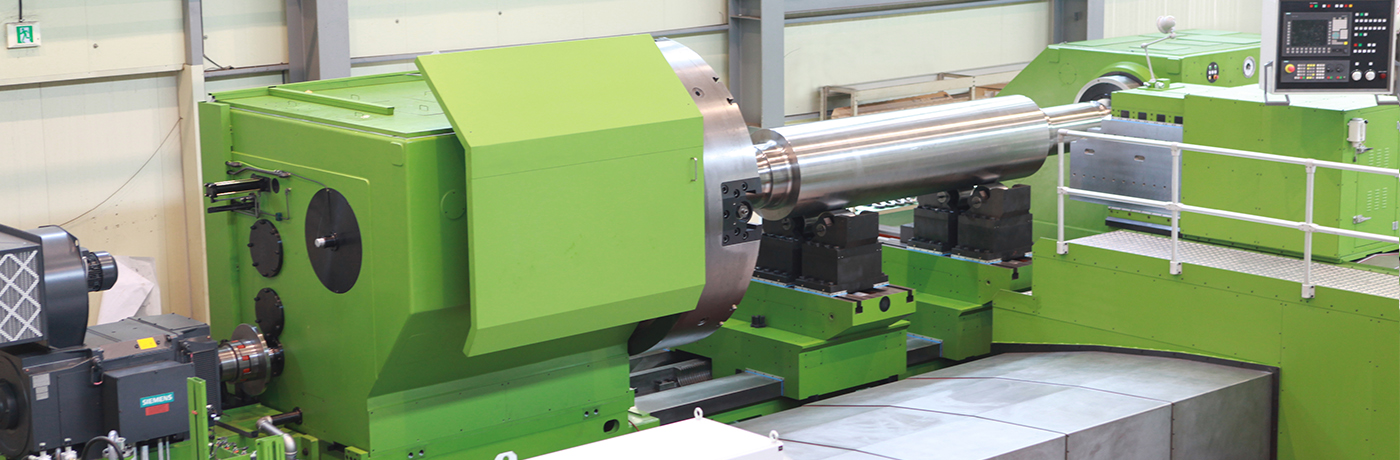

SANGNIM MSP developed and delivered the first-ever large-scale horizontal lathe in Korea, based on the basic design consulting from a German consultant who pioneered Hydrostatic technology worldwide. Our products are supplied across various fields including steelmaking, heavy industry, and power generation.

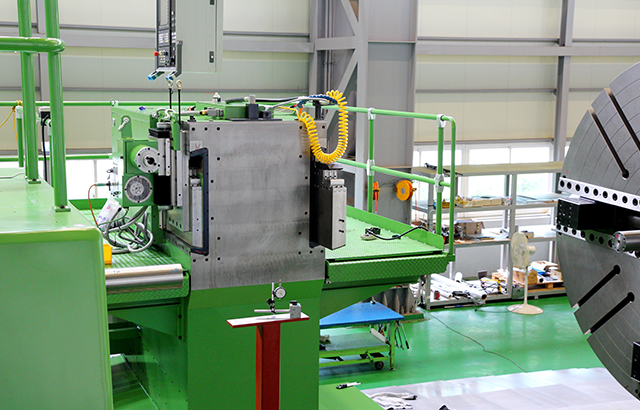

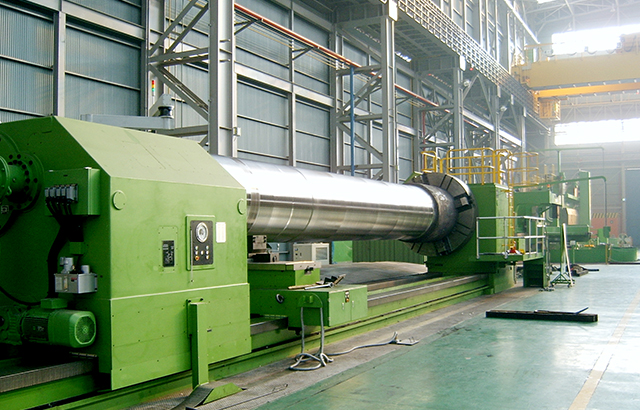

DETAIL IMAGE
Specification
| Specification | SNHL1 | SNHL2 | SNHL3 | SNHL4 | SNHL5 |
|---|---|---|---|---|---|
| Max. Workpiece weight between centers | 50 ton | 100 ton | 150 ton | 250 ton | 350 ton |
| Max. swing over carriage | 4,000 mm | 4,000 mm | 5,000 mm | 5,000 mm | 6,000 mm |
| Max. turning length | 15,000 mm | 20,000 mm | 30,000 mm | ||
| Spindle motor power | 90 ~ 130 kW | 150 ~ 250 kW | 200 ~ 300 kW | 200 ~ 300 kW | 250 ~ 360 kW |
| Speed range of spindle | 0.5 ~ 200 rpm | 0.5 ~ 150 rpm | 0.5 ~ 150 rpm | 0.5 ~ 120 rpm | 0.5 ~ 120 rpm |
| Max. cutting force | 160 kN | 160 kN | 200 kN | 250 kN | 250 kN |
| X-axis stroke | 700 ~ 1,300 mm | 1,000 ~ 1,500 mm | 1,000 ~ 2,000 mm | 1,000 ~ 2,000 mm | 1,000 ~ 2,500 mm |
| Z-axis stroke | 16,000 mm | 21,500 mm | 31,500 mm | ||
| X-axis feed rate | 6,000 mm/min | ||||
| Z-axis feed rate | 6,000 (10,000) mm/min | ||||
| Control system | Siemens or Fanuc | ||||
| Measuring system | Heidenhain or Fagor | ||||
*Please ask to our company if you need customized specification.
Basic Accessories
- X, Z-axis telescopic cover
- Work light
- Patrol lamp (red, green, yellow)
- Leveling block & anchor bolt
- 4 chucking jaw units
- Test bar
- Center (60°, 75° 90°)
Optional Accessories
- Coolant supply unit (internal / external)
- Chip conveyor
- C-axis function
- Dual cutting attachment
- Milling attachment
- Grinding attachment
- Drilling attachment
- Boring unit
- Special external cutter unit
- Roller rest
- Hydrostatic steady rest
- Hydraulic steady rest
- Machine tools monitoring system (black box)
- Industrial camera with recorder
