Dedicated Machining Machines
-

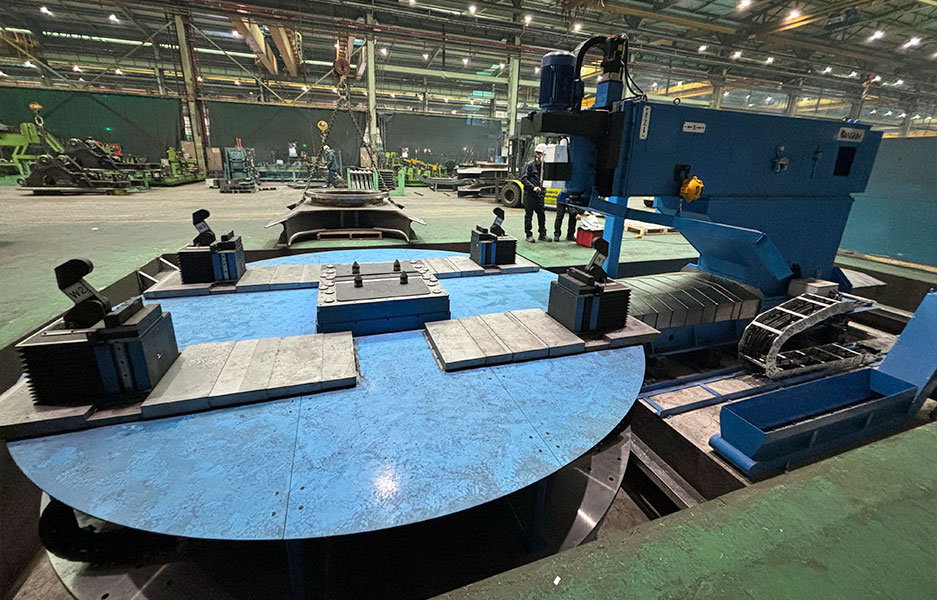

Milling Machine Face Milling with auto Alignment
-
In order to achieve the necessary productivity and quality that cannot be achieved with general -purpose equipment, SANGNIM MSP develops and supplies dedicated equipment or systems for specific purposes.

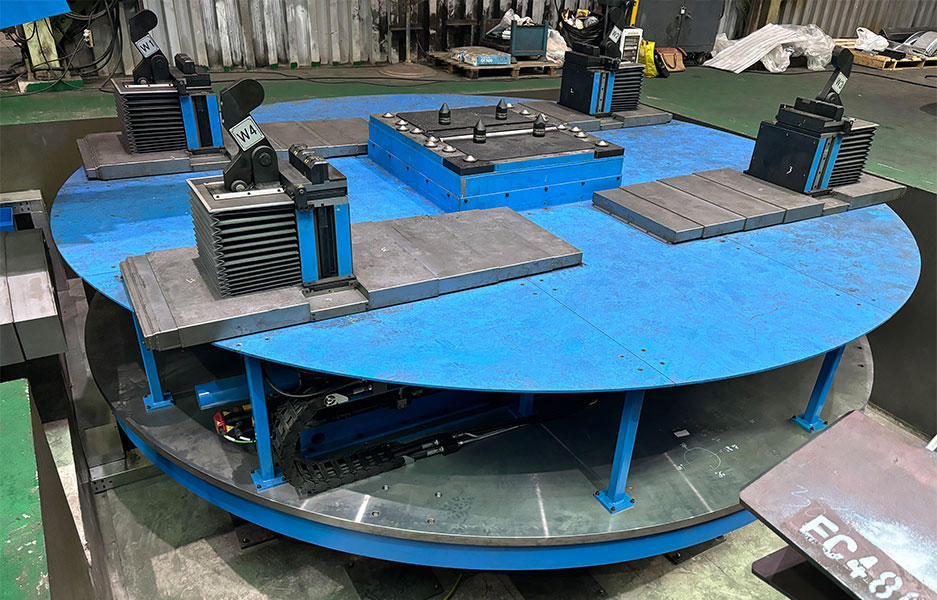

By controlling each of the four W axes on the table through servo control, manufacturing errors of large, complex workpieces are self-compensated to achieve the required machining accuracy. This can dramatically reduce production time, processes, and costs.
-
In order to achieve the necessary productivity and quality that cannot be achieved with general -purpose equipment, SANGNIM MSP develops and supplies dedicated equipment or systems for specific purposes.
| Items | Specification | |
|---|---|---|
| Machine size (mm)L×W×H | 5,600 × 10,500 × 2,600 | |
| Machine weight (ton) | 15 | |

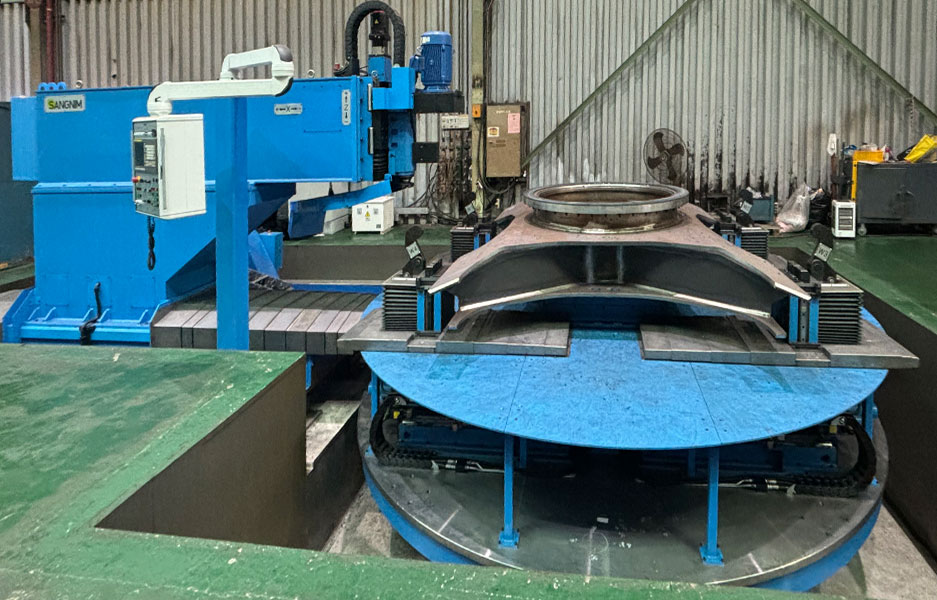

| Workpiece | Excavator center frame | |
| Main spindle | Number of spindle | 1 set |
| Spindle rotating speed (rpm) | Normal : 100 – max. 696 | |
| Stroke | X-axis (mm) | 1,650 |
| Y-axis (mm) | 750 | |
| Z-axis (mm) | 350 | |
| Rotary table (°) | 360 | |
| W-axis (mm) | 360 | |
| Rapid travers | X-axis (mm/min) | 6,000 |
| Z-axis (mm/min) | 360 | |
| Rotary table (rpm) | 0~3 | |

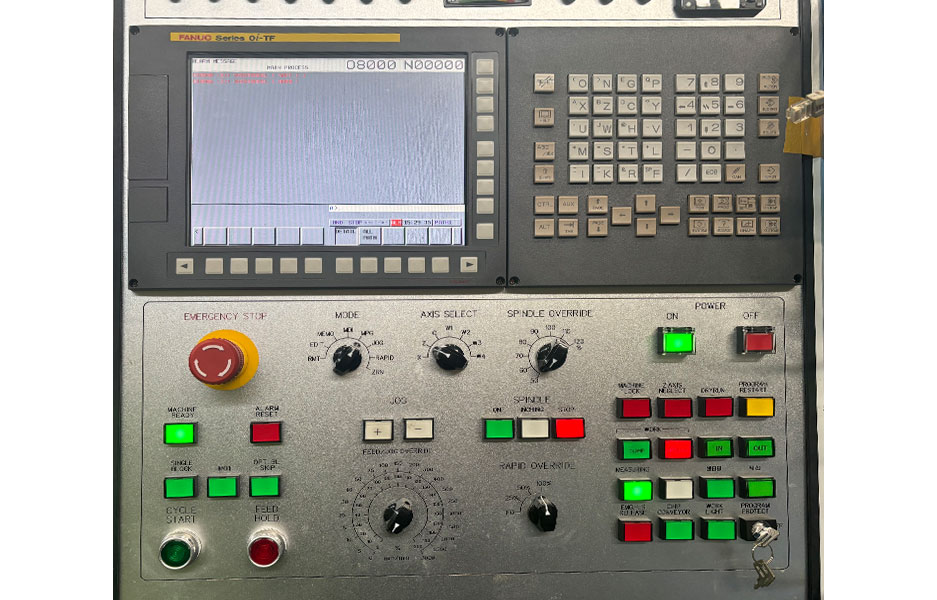

| CNC system | Control system | FANUC Oi-T |
| Input system | LCD conversation input | |
| Total Power | 220/440v, 60Hz, 3PH | 40 Kw |
