Dedicated Machining Machines
-

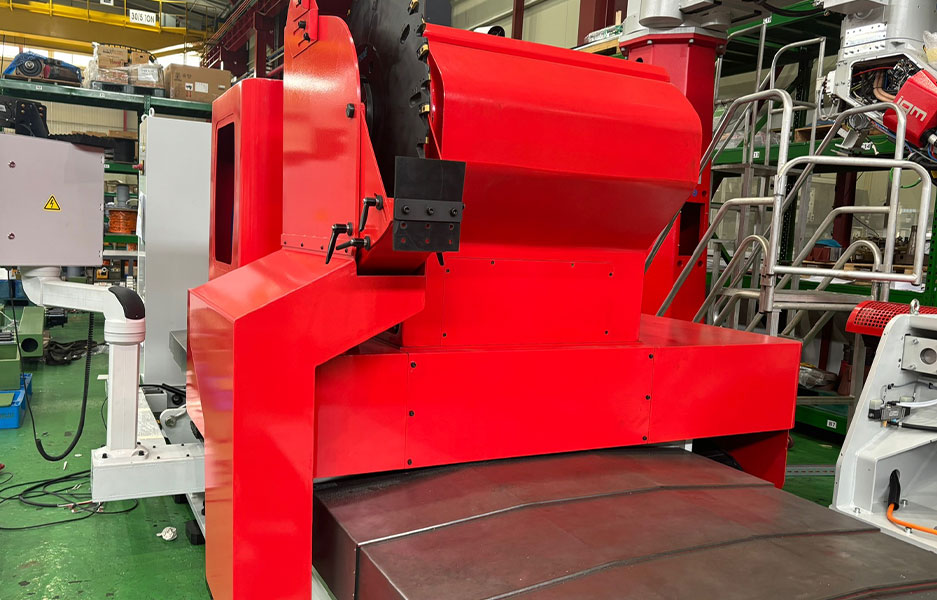

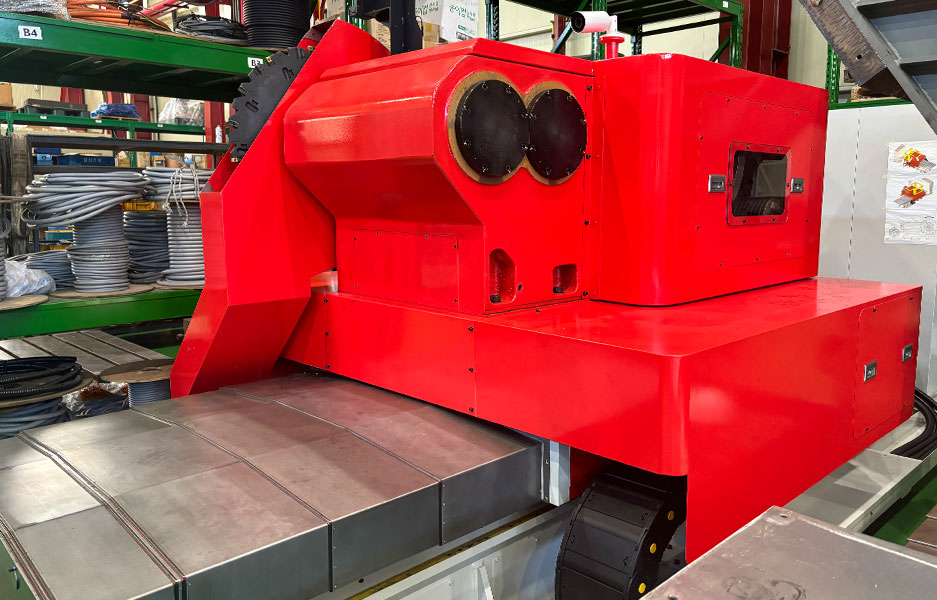

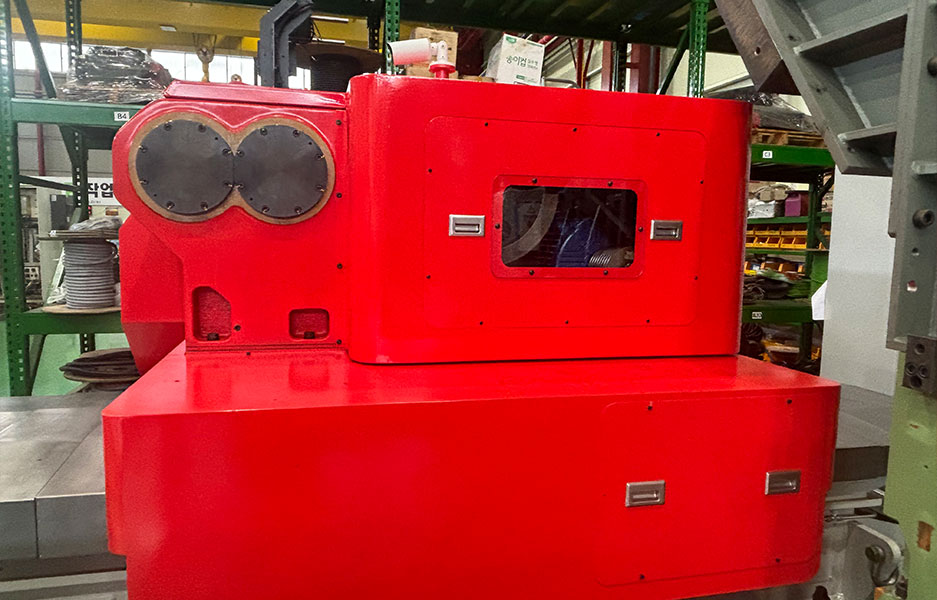

Seam Milling Machines Circumferential(C-seam) and Longitudinal (L-seam)
- A surrface measuring device is installed on the side of the spindle head to measure the height difference between the machining surfaces before machining to determine the final machining amount.
| Items | Specification | |
|---|---|---|
| Machine size (mm)L×W×H | 5,600 × 10,500 × 2,600 | |
| Machine weight (ton) | 15 | |
| Workpiece | EC380/EC550, HX200/HX300 | |
| VDK14/VDK22, DX80 | ||
| Main spindle | Number of spindle | 1 set |
| Spindle rotating speed (rpm) | Normal : 100 - max. 696 | |
| Stroke | X-axis (mm) | 1,650 |
| Y-axis (mm) | 750 | |
| Z-axis (mm) | 350 | |
| Rotary table (°) | 360 | |
| W-axis (mm) | 360 | |
| Rapid travers | X-axis (mm/min) | 6,000 |
| Z-axis (mm/min) | 360 | |
| Rotary table (rpm) | 0 ~ 3 | |
| CNC system | Control system | PC-NC |
| Input system | LCD conversation input | |
| Total power | 220/440v, 60Hz, 3PH | 40 |
