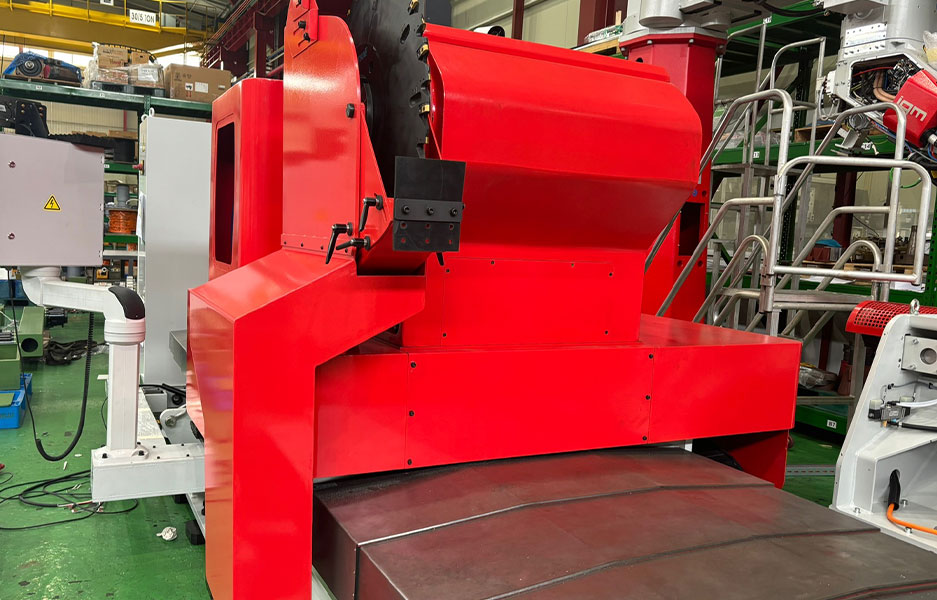

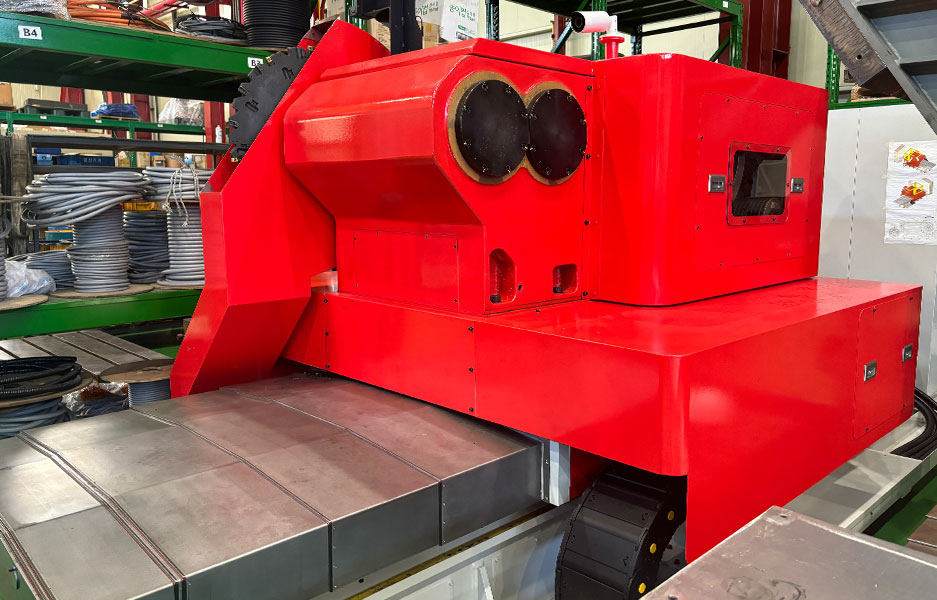

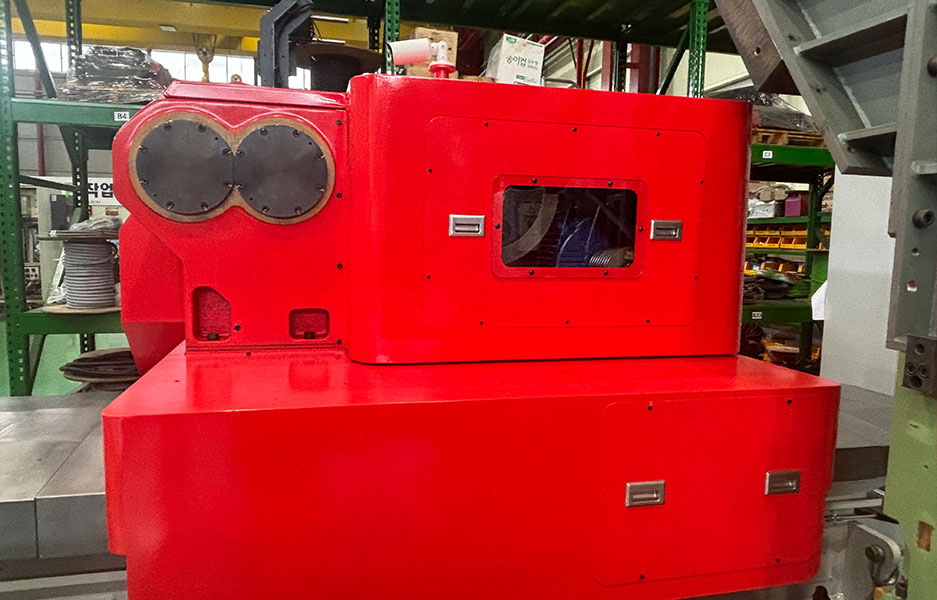

Seam Milling Machines Circumferential(C-seam) and Longitudinal (L-seam)
-
此前，工人采用气刨来改进管道连接，但这导致了工时过长、质量差、风险高、改进形状过大等问题。
SANGNIM MSP Co.,Ltd.开发的具有自动缝跟踪功能的铣缝机可以改善现有问题并实现高质量焊缝。
-
此前，工人采用气刨来改进管道连接，但这导致了工时过长、质量差、风险高、改进形状过大等问题。
| Items | Specification | |
|---|---|---|
| Machine size (mm)L×W×H | 5,600 × 10,500 × 2,600 | |
| Machine weight (ton) | 15 | |
| Workpiece | EC380/EC550, HX200/HX300 | |
| VDK14/VDK22, DX80 | ||
| Main spindle | Number of spindle | 1 set |
| Spindle rotating speed (rpm) | Normal : 100 - max. 696 | |
| Stroke | X-axis (mm) | 1,650 |
| Y-axis (mm) | 750 | |
| Z-axis (mm) | 350 | |
| Rotary table (°) | 360 | |
| W-axis (mm) | 360 | |
| Rapid travers | X-axis (mm/min) | 6,000 |
| Z-axis (mm/min) | 360 | |
| Rotary table (rpm) | 0 ~ 3 | |

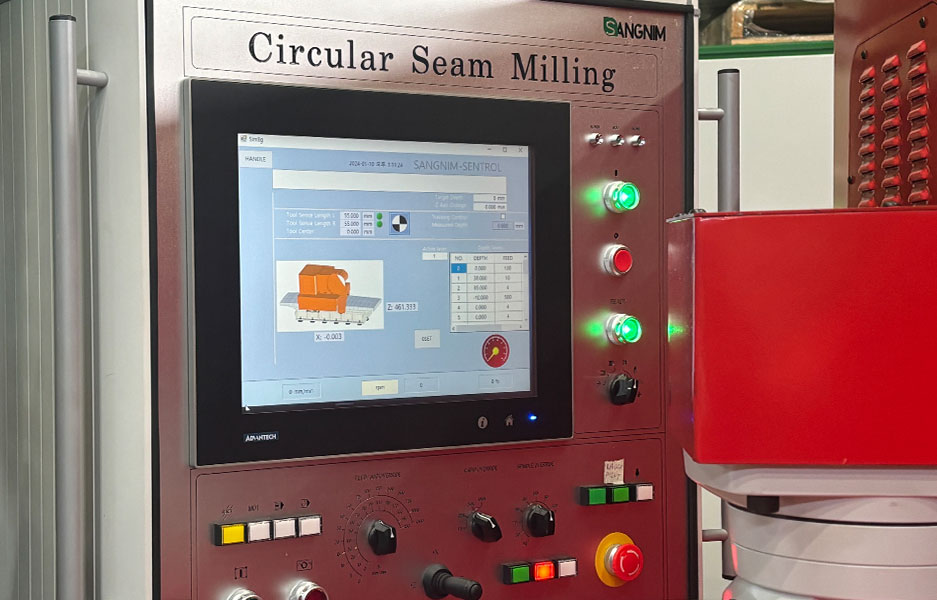

| CNC system | Control system | PC-NC |
| Input system | LCD conversation input | |
| Total power | 220/440v, 60Hz, 3PH | 40 |
