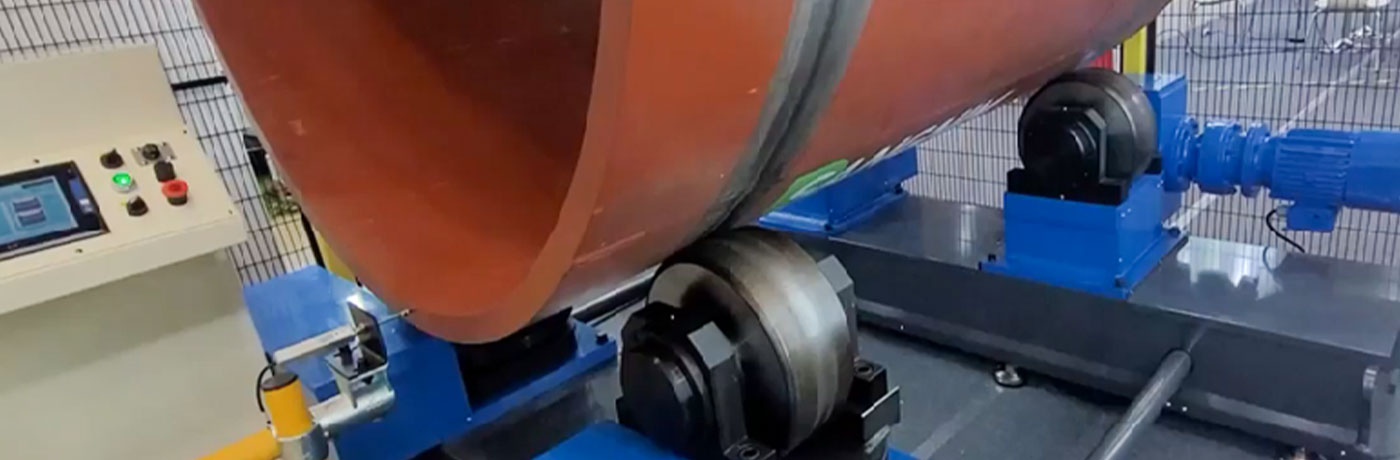

Anti Drift Turning Roller
INTRODUCTION

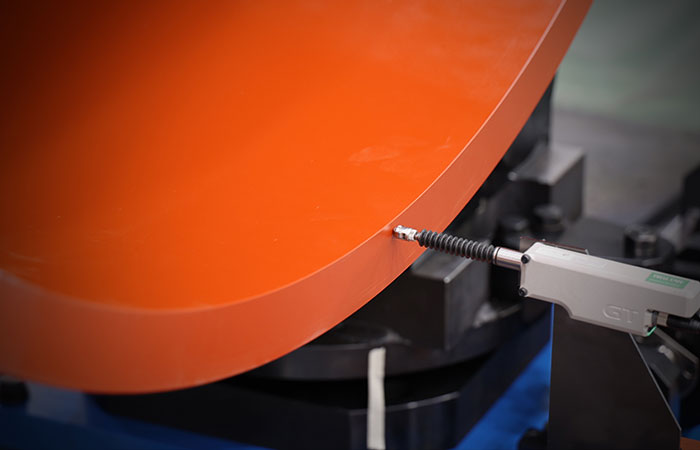

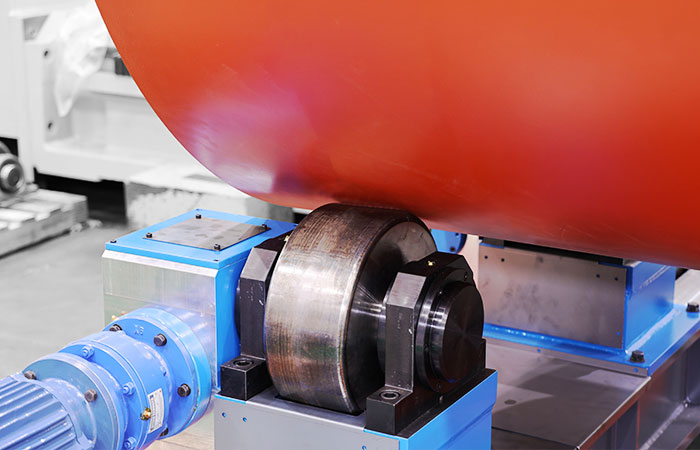

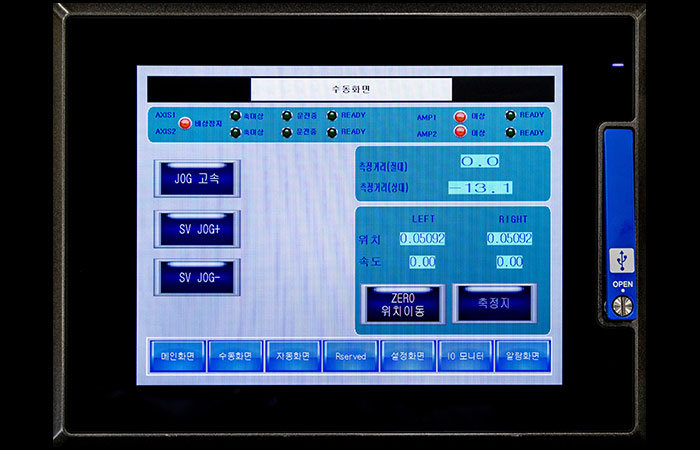

As it is impossible for a pipe-shaped workpiece to be 100% circular or for the turning rolls to be 100% level, the workpiece moves laterally as it rotates on the turning rolls. SANGNIM MSP Anti Drift Turning Roller system prevents drift when the workpiece deviates to the side, by having a sensor receive the signal, and through PLC automatic control, the servo motor operates the roller to return the workpiece to its original position.
| Model | Capacity |
|---|---|
| SM-TRA50 | 50 ton |
| SM-TRA100 | 100 ton |
| SM-TRA200 | 200 ton |
| SM-TRA500 | 500 ton |
| SM-TRA800 | 800 ton |
| SM-TRA1000 | 1,000 ton |
| Items | Specification |
|---|---|

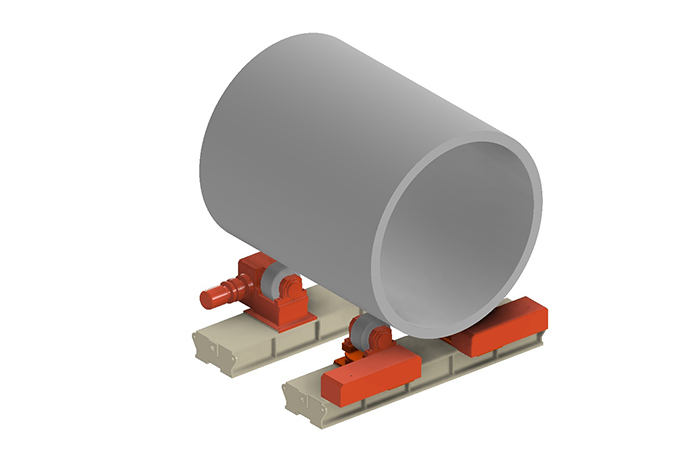

| Configuration | 1 × Drive Turning Roller |
| 1 × Anti Drift Turning Roller | |
| Sensor unit | |
| Scope of application | Monopile / pinpile for wind power generation |
| Pressure vessel production | |
| Small Modular Reactor (SMR) production | |
| Features | Controls the drift direction motion of the pipe regardless of the direction of rotation |
| Adjust levels to prevent drift | |
| Optimization for welding work by performing anti-drift function without tilting the pipe or disturbing the pipe center line | |
| Load Capacity | 10 ~ 1,000 tons per unit (20 ~ 2,000 tons per set) |
| Diameter range (mm) | 1,000 ~ 15,000 |
| Anti Drift Control range (mm) | ±2 |

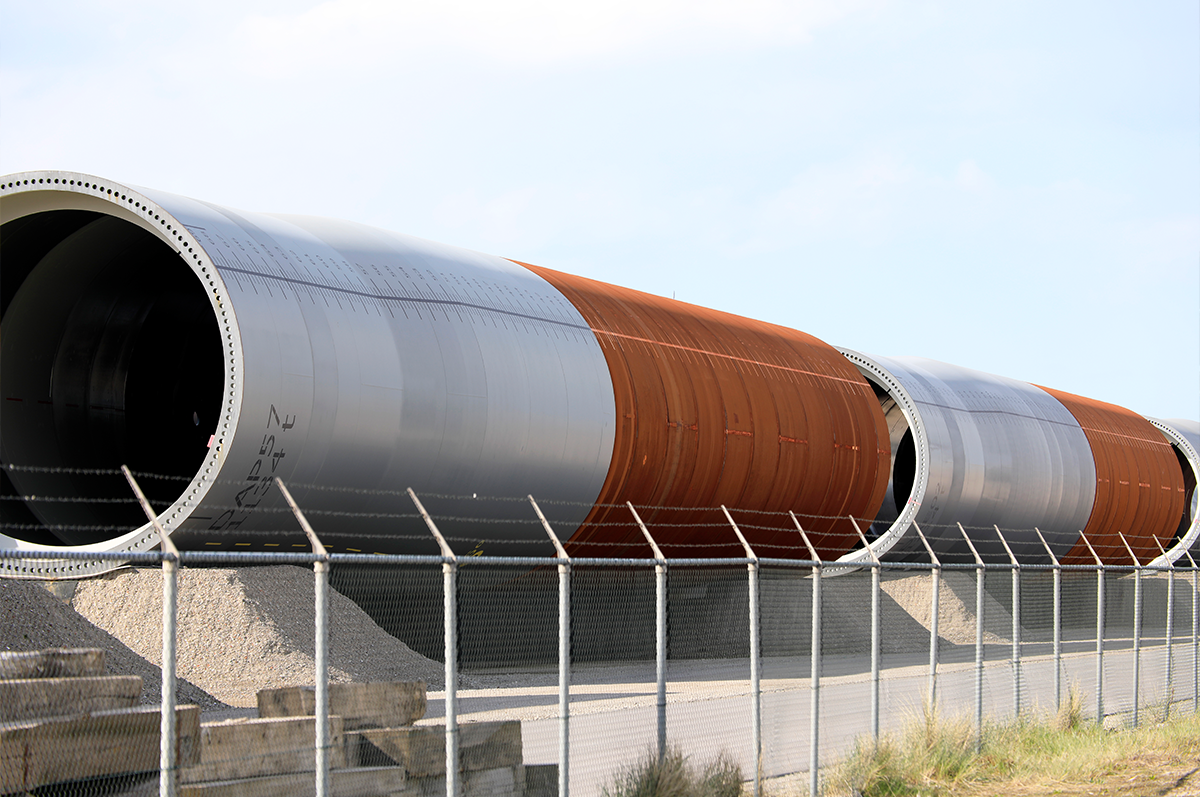

- The total length of the finished product of a large pipe structure (monopile, pressure vessel, etc.) is easily over 100m, and the length is increased by continuously welding unit cans.
- Lateral movement occurs when rotating the material during machining and welding of can connections.
- This amount of lateral movement come to very large, which is a fatal factor in welding defects
- Improves machining and weldability by controlling the axial movement amount as follows.
