전용 가공기

  • 탑 엣지 밀링 머신 Top Edge Milling Machines

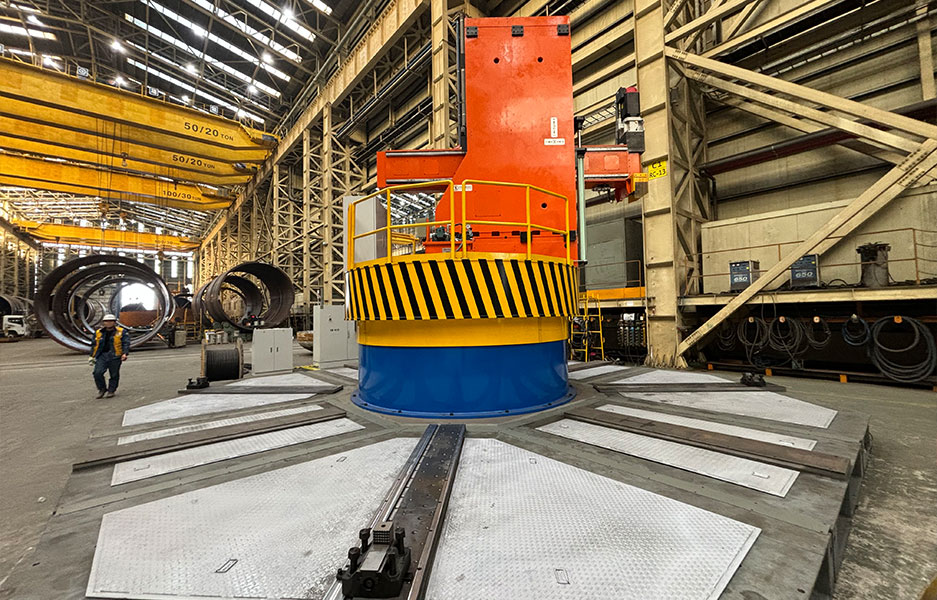

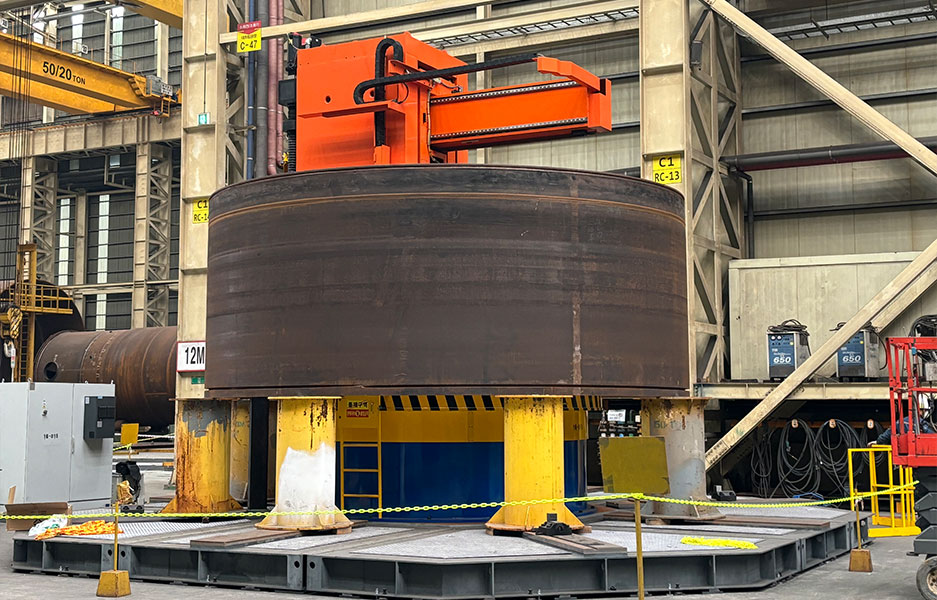

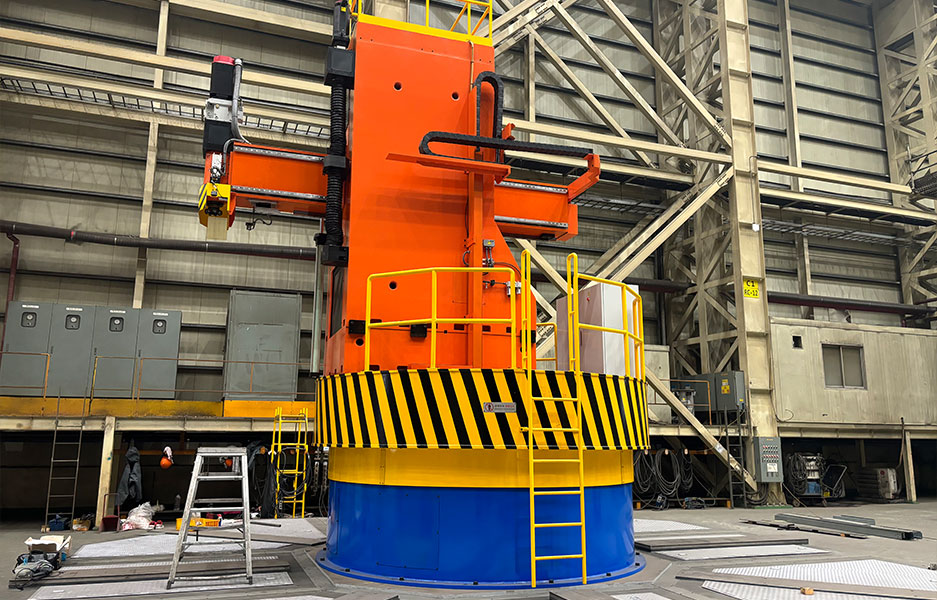

    Can의 Top Flange면을 가공하는 Milling Machine.
    스핀들 헤드 측면에 평면 측정 장치가 설치되어있어 가공 전 가공 면의 높이 차이를 측정하여 최종 가공량을 결정합니다.
Items Specification
Machine size (mm)L×W×H 9,000 × 9,000 × 6,800
Machine weight (ton) 42
Workpiece Diameter (mm) 5,000 ~ 8,500
Height (mm) 3,000 ~ 4,200
Wall thickness (mm) 30 ~ 120
Material S355 or S460 or Carbon steels
Main spindle Rotating speed (rpm) 115 ~ 600
Motor power (kW) 22
Cutting tool dia. (mm) ø160
Travelling feed (X-axis) Stroke (mm) 2,190
Feed rate (mm/min) Max. 6,000
Servo motor power (kW) 3
Travelling feed (Z-axis) Stroke (mm) 1,300
Feed rate (mm/min) Max. 6,000
Servo motor power (kW) 6
Rotating feed (C-axis) Rotation (°) Infinite rotation
Feed rate (mm/min) 0~3
Servo motor power (kW) 6
Laser measuring system · Before processing, the final processing depth is determined by measuring the height difference on the upper surface of the can, using a laser sensor.
· Before processing, check the concentricity of the inner diameter of the can using a laser sensor.
Control system FANUC Oi-MF+
Lubrication system Slide way & Ball screw Centralized lubrication system
touch slide
