공작기계 제작/개발

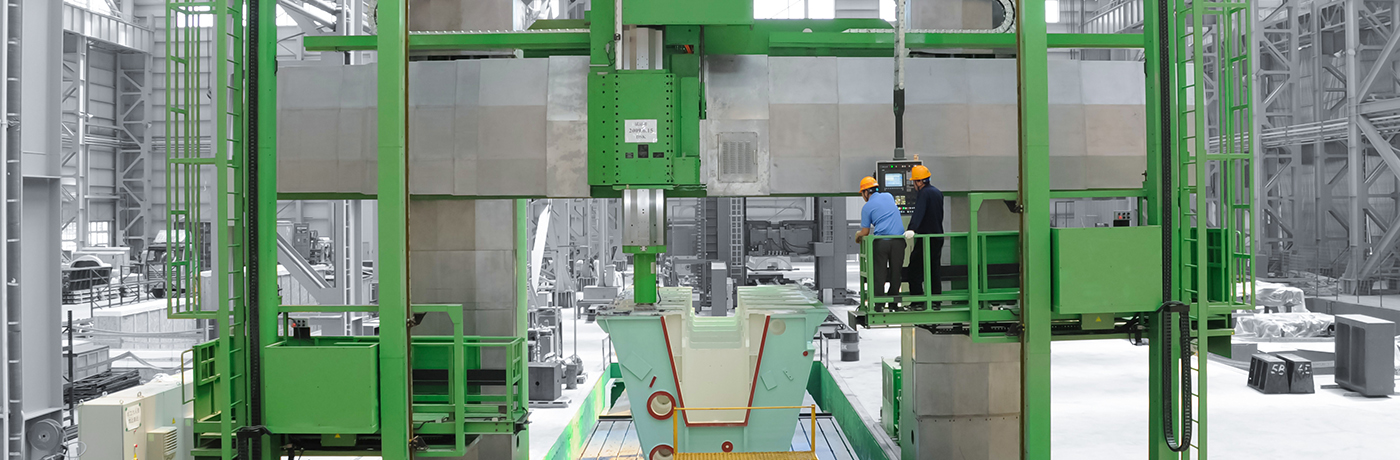

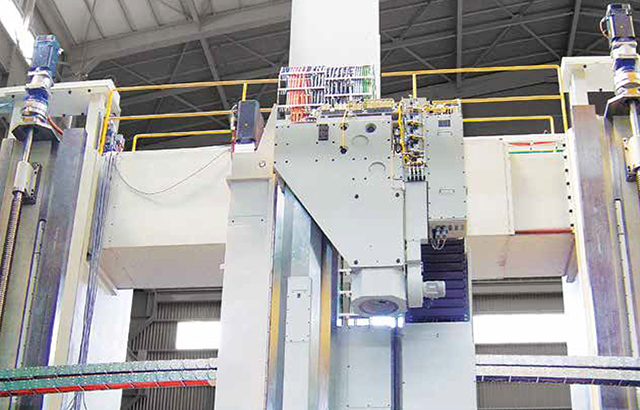

(주)상림엠에스피는 다목적 가공이 가능한 Plano miller를 생산하고 있습니다 (주)상림엠에스피만의 특허를 가진 고품질의 Hydrostatic Worm 기어가 적용되며 옵션으로 독일 Waldrich Coburg 사의 Headstock이 장착됩니다. 파워풀하고 고정밀한 기계가공을 경험하시길 바랍니다.

DETAIL IMAGE
Specification
Specification SPM4500 (SGPM4500) SPM5500 (SGPM5500) SPM6500 (SGPM6500) SPM7500 (SGPM7500) SPM8500 (SGPM8500)
Capacity Distance between columns 4,500 mm 5,500 mm 6,500 mm 7,500 mm 8,500 mm
Distance between table surface & spindle nose 2,500 ~ 4,500 mm 4,000 ~ 5,500 mm 4,000 ~ 6,500 mm 4,000 ~ 7,500 mm 4,000 ~ 8,500 mm
Table size 3,500 mm (138 in.) 4,500 mm 5,500 mm 6,500 mm 7,500 mm
Spindle motor power AC 75 ~ 105 kW AC 105 kW AC 105 ~ 150 kW
Ram section 600 × 600 mm 600 × 600 / 630 × 630 mm 600 × 600 / 630 × 630 mm
Stroke X-axis 6,000 ~ 20,000 mm 8,000 ~ 25,000 mm 8,000 ~ 25,000 mm 8,000 ~ 25,000 mm
Y-axis 5,000 ~ 6,000 mm 6,000 ~ 7,000 mm 7,000 ~ 8,000 mm 8,000 ~ 9,000 mm 9,000 ~ 10,000 mm
Z-axis 1,500 ~ 2,500 mm 1,500 ~ 3,000 mm 1,500 ~ 3,000 mm 1,500 ~ 4,000 mm
W-axis 2,000 ~ 3,500 mm 3,000 ~ 4,500 mm 3,000 ~ 4,500 mm 3,000 ~ 5,500 mm 3,000 ~ 6,500 mm
Feed rate X-axis 10,000 mm/min 10,000 mm/min
Y-axis 10,000 ~ 15,000 mm/min 10,000 ~ 15,000 mm/min
Z-axis 10,000 mm/min 10,000 mm/min
W-axis 2,000 mm/min 2,000 mm/min
Control system Siemens or Fanuc
Measuring system Haidenhain or Fagor
touch slide

*상기 사양 외 주문제작 사양은 당사로 연락 바랍니다.

Basic Accessories
  • X, Y, W-axis telescopic cover
  • Work light
  • Patrol lamp (red, green, yellow)
  • X & Z-axis telescopic cover
  • Leveling block & anchor bolt
Optional Accessories
  • Coolant supply unit (internal / external)
  • Chip conveyor
  • Automatic tool changer
  • Automatic attachment changer
  • Attachment
  • Facing head
  • Adapter
  • Extractable and independent operator platform
  • Renishaw probe system
  • Laser tool measurement system
  • Machine tools monitoring system(black box)
  • Industrial camera with recorder
