Specification	SNHL1	SNHL2	SNHL3	SNHL4	SNHL5
Max. Workpiece weight between centers	50 ton	100 ton	150 ton	250 ton	350 ton
Max. swing over carriage	4,000 mm	4,000 mm	5,000 mm	5,000 mm	6,000 mm
Max. turning length	15,000 mm	20,000 mm	30,000 mm
Spindle motor power	90 ~ 130 kW	150 ~ 250 kW	200 ~ 300 kW	200 ~ 300 kW	250 ~ 360 kW
Speed range of spindle	0.5 ~ 200 rpm	0.5 ~ 150 rpm	0.5 ~ 150 rpm	0.5 ~ 120 rpm	0.5 ~ 120 rpm
Max. cutting force	160 kN	160 kN	200 kN	250 kN	250 kN
X-axis stroke	700 ~ 1,300 mm	1,000 ~ 1,500 mm	1,000 ~ 2,000 mm	1,000 ~ 2,000 mm	1,000 ~ 2,500 mm
Z-axis stroke	16,000 mm	21,500 mm	31,500 mm
X-axis feed rate	6,000 mm/min
Z-axis feed rate	6,000 (10,000) mm/min
Control system	Siemens or Fanuc
Measuring system	Heidenhain or Fagor

*상기 사양 외 주문제작 사양은 당사로 연락 바랍니다.

• X, Z-axis telescopic cover
• Work light
• Patrol lamp (red, green, yellow)
• Leveling block & anchor bolt

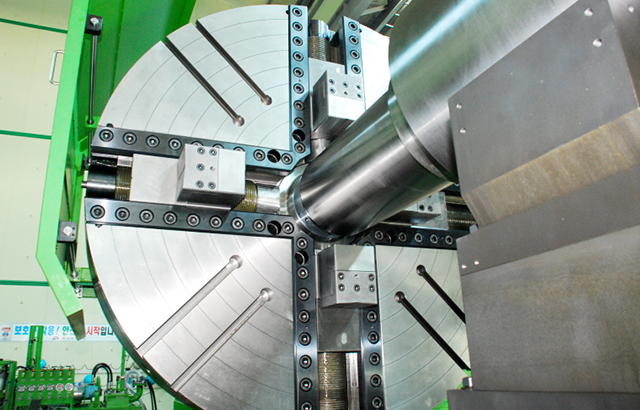

• 4 chucking jaw units
• Test bar
• Center (60°, 75° 90°)

• Coolant supply unit (internal / external)
• Chip conveyor
• C-axis function
• Dual cutting attachment
• Milling attachment
• Grinding attachment
• Drilling attachment
• Boring unit
• Special external cutter unit
• Roller rest
• Hydrostatic steady rest
• Hydraulic steady rest
• Machine tools monitoring system (black box)
• Industrial camera with recorder
