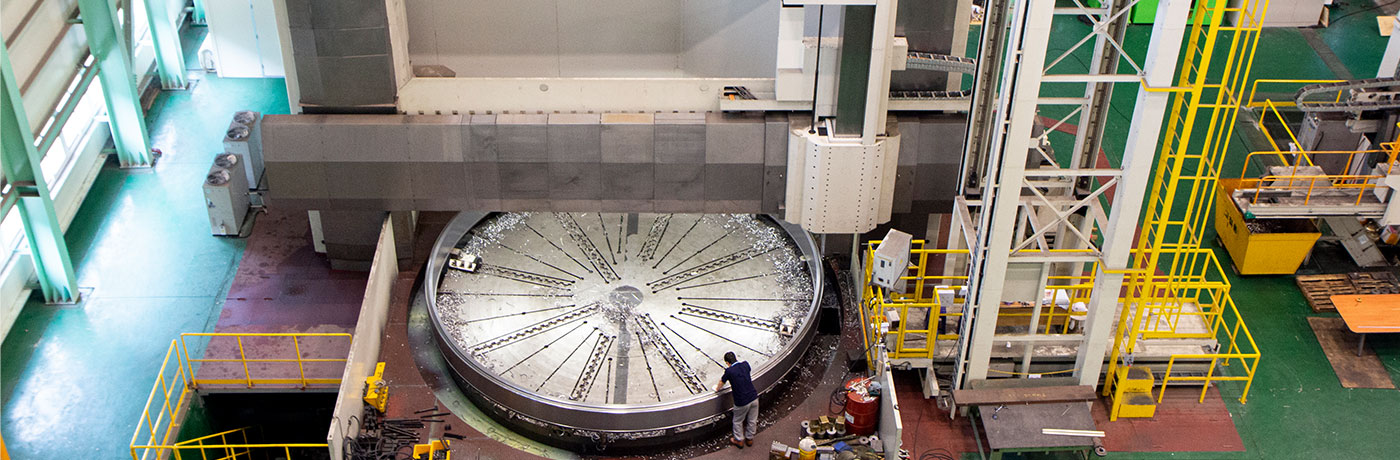

We invite you to experience the vertically integrated lathes produced with SANGNIM MSP 's proprietary technology. These lathes can be equipped with milling and boring functions as options and are capable of producing vertical lathes with a swing of up to 12 meters and weighing up to 600 tons. They are supplied to various industries including heavy industry and nuclear power.

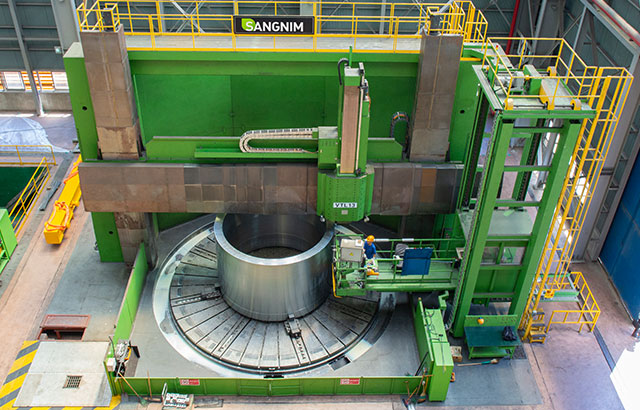

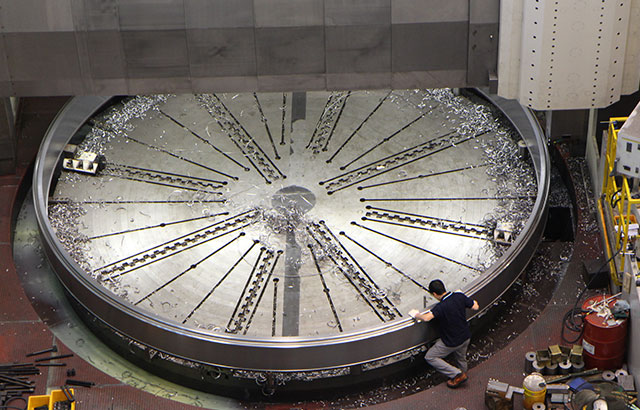

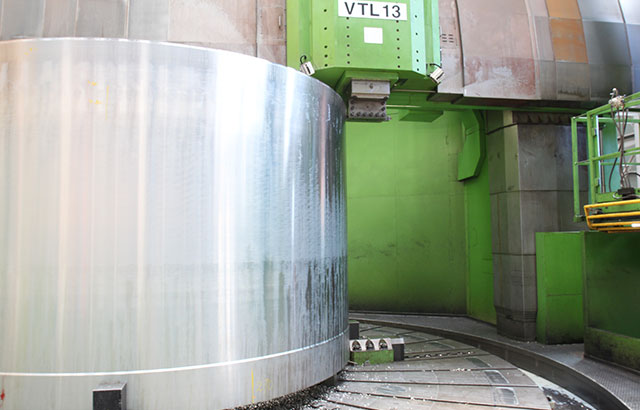

DETAIL IMAGE
Specification
Specification SNVTM4050 SNVTM5060 SNVTM6070 SNVTM7085 SNVTM80100 SNVTM100120
Capacity Max.Turning diameter 5,000 mm 6,000 mm 7,000 mm 8,500 mm 10,000 mm 12,000 mm
Table diameter 4,000 mm 5,000 mm 6,000 mm 7,000 mm 8,000 mm 10,000 mm
Max.Turning height 2,000 ~ 5,000 mm 3,000 ~ 6,000 mm 3,000 ~ 6,000 mm 4,000 ~ 9,000 mm 4,000 ~ 9,000 mm 4,000 ~ 9,000 mm
Stroke X-axis 2,700 mm 3,200 mm 3,700 mm 4,450 mm 5,200 mm 6,200 mm
Z-axis 1,000 ~ 2,000 mm 2,000 ~ 3,000 mm 2,000 ~ 3,000 mm 2,000 ~ 4,000 mm 2,000 ~ 4,000 mm 2,000 ~ 4,000 mm
W-axis 2,000 ~ 4,000 mm 2,000 ~ 5,000 mm 2,000 ~ 5,000 mm 3,000 ~ 7,000 mm 3,000 ~ 7,000 mm 3,000 ~ 8,000 mm
Feedrate X-axis 10,000 ~ 15,000 mm/min
Z-axis 10,000 mm/min
W-axis 2,000 mm/min
Milling spindle Spindle motor power 22 ~ 45 kW 37 ~ 60 kW 37 ~ 60 kW
Spindle speed 1,500 / 2,000 rpm
Ram section 350 x 350 / 400 x 400 400 x 400 450 x 520
Turning table Motor power 75 ~ 100 kW 100 ~ 150 kW 100 ~ 150 kW 150 ~ 200 kW
Max.Turning speed 50 (100) rpm 30 (50) rpm 30 (50) rpm 20 (30) rpm 20 (30) rpm 20 rpm
Max.Workpiece weight 50 ~ 80 ton 100 ~ 150 ton 100 ~ 200 ton 150 ~ 400 ton 150 ~ 400 ton 200 ~ 600 ton
Control system Siemens or Fanuc
Measuring system Heidenhain or Fagor
touch slide

*Please ask to our company if you need customized specification.

Basic Accessories
  • 4 chucking jaw units
  • X, W-axis telescopic cover
  • Patrol lamp (red, green, yellow)
  • Leveling block & anchor bolt
  • Turning tool holder
  • Boring bar
Optional Accessories
  • Coolant supply unit (internal / external)
  • Chip conveyor
  • C-axis function
  • Milling head
  • Automatic tool changer
  • Automatic attachment changer
  • Attachment
  • Adapter
  • Extractable and independent operator platform
  • Renishaw probe system
  • Laser tool measurement system
  • Machine tools monitoring system (black box)
  • Industrial camera with recorder
