Specification		SNRG-W	SNRG-B	SNRG-T
Working range	Distance between centers	6,000 mm	6,000 mm	13,500 mm
	Center height	1,100 mm	1,100 mm	1,900 mm
	Range of roll diameter	Ø446 ~ 1,100 mm	Ø446 ~ 1,600 mm	Ø900 ~ 2,500 mm
	Workpiece weight in hydrodynamics steady rest	35 ton	60 ton	300 ton
Headstock	Headstock motor power	51 kW	51 kW	200 kW
	Speed range of faceplate	7 ~ 70 rpm	7 ~ 70 rpm	5 ~ 50 rpm
	Torque at faceplate	16,000 Nm	16,000 Nm	103,000 Nm
Tailstock	Quill stroke	1,000 mm	1,000 mm	1,000 mm

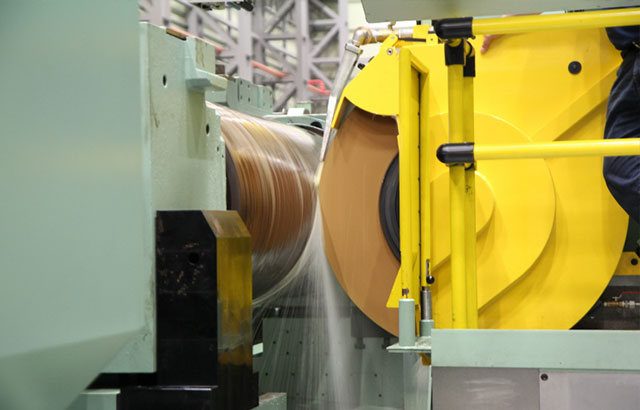

Grinding wheel	Grinding wheel motor	100 kW	100 kW	170 kW
	Grinding spindle speed	275 ~ 1,375 rpm	275 ~ 1,375 rpm	400 ~ 1,600 rpm
	Bore	508 mm	508 mm	508 mm
Feedrate	Z-axis	6 ~ 6,000 mm/min	6 ~ 6,000 mm/min	6 ~ 6,000 mm/min
	X-axis	1 ~ 1,000 mm/min	1 ~ 1,000 mm/min	1 ~ 1,000 mm/min
	U-axis	50 mm/min	50 mm/min	50 mm/min
Roll measuring arm	Diameter range	400 ~ 1,100 mm	400 ~ 1,600 mm	900 ~ 2,500 mm
Control system		SRC1 / Siemens
Measuring system		Haidenhain or Fagor

*对于上述以外的定制规格，请联系我们。

• Standard steady rest

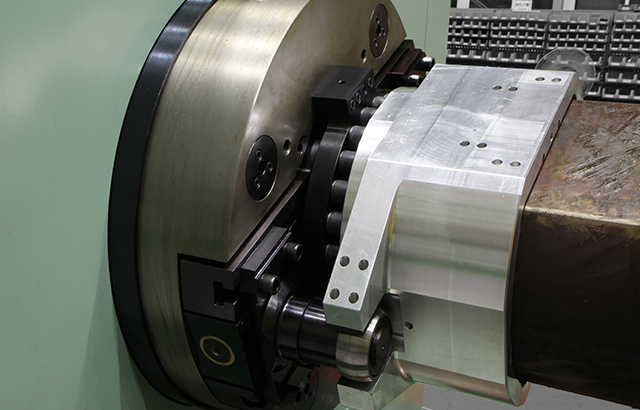

• Roll driver
• Roll measuring unit
• X & Z-axis telescopic cover
• Work light
• Patrol ramp (red, green, yellow)
• Leveling block & anchor bolt

• Crack detector (ECT/UT)
• Slewing crane
• U1-axis function
• Chock tilting device
• Coolant unit and filtering system
• Roughness measuring device
• B-axis function
• Drying & oiling unit
